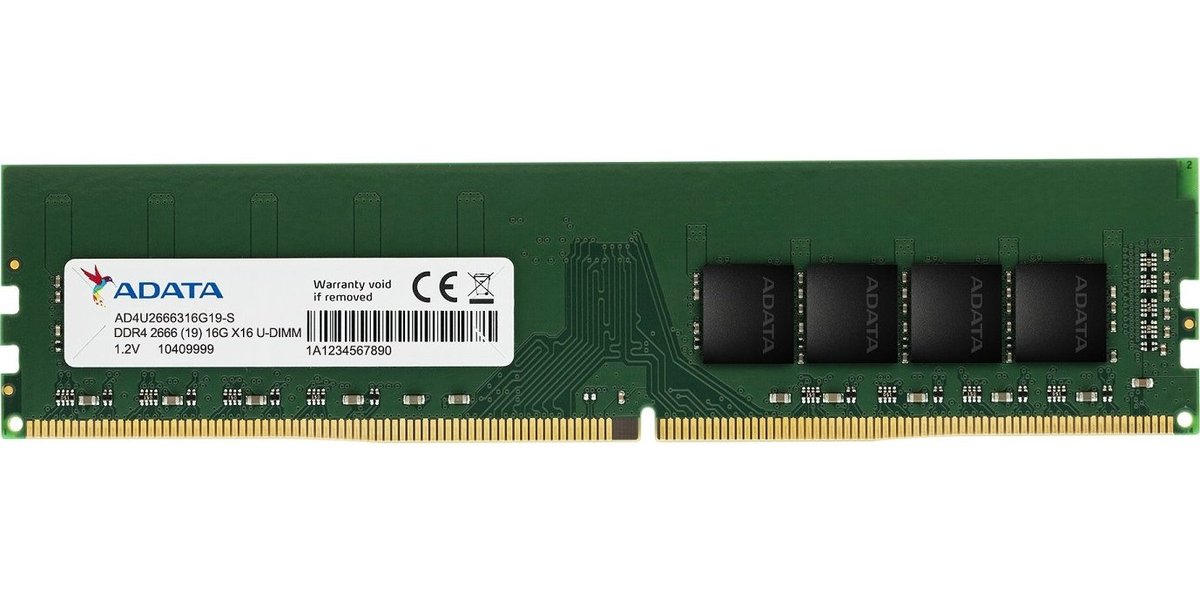

Premier DDR4 2666 Unbuffered-DIMM Memory - THAT´S HOW UPGRADE IS SPELLED.
ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel´s newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
Features
- High speed up to 2666MHz
- Transfer bandwidth up to 21.3GB/s
- Energy efficient: saves 20% power compared to DDR3
- 8-layer PCB provides improved signal transfer and system stability
- Supports Intel Skylake-X and Kaby Lake-X CPU
TECHNICAL SPECIFICATIONS
| Speed |
DDR4 2666 MHz |
| Module size |
4GB / 8GB / 16GB |
| CAS Latency |
19 - 19 - 19 |
| Standard |
JEDEC |
| Interface |
288-pin |
| DRAM activation power supply |
VPP= 2.5V (+0.25V / -0.125V) |
| DRAM spec/VCC |
DDR4 STD 1.2V |
| Operating temperature |
0°C to 85°C |
| Storage temperature |
-55°C to 100°C |
| Power supply |
VDD and VDDQ = 1.2V±0.06V |
| Warranty |
Lifetime |
