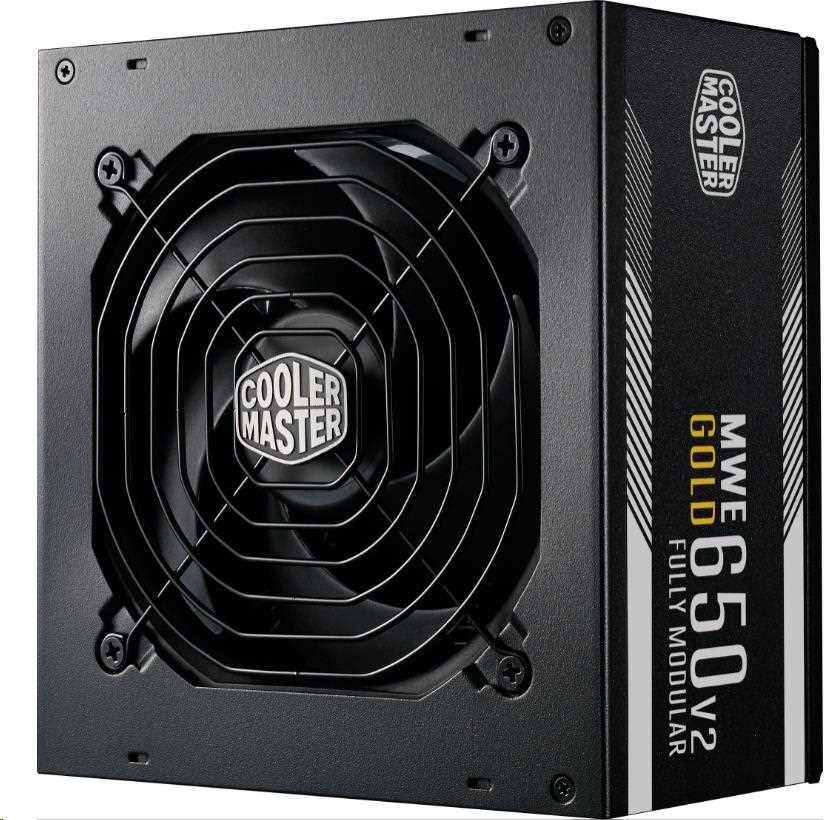

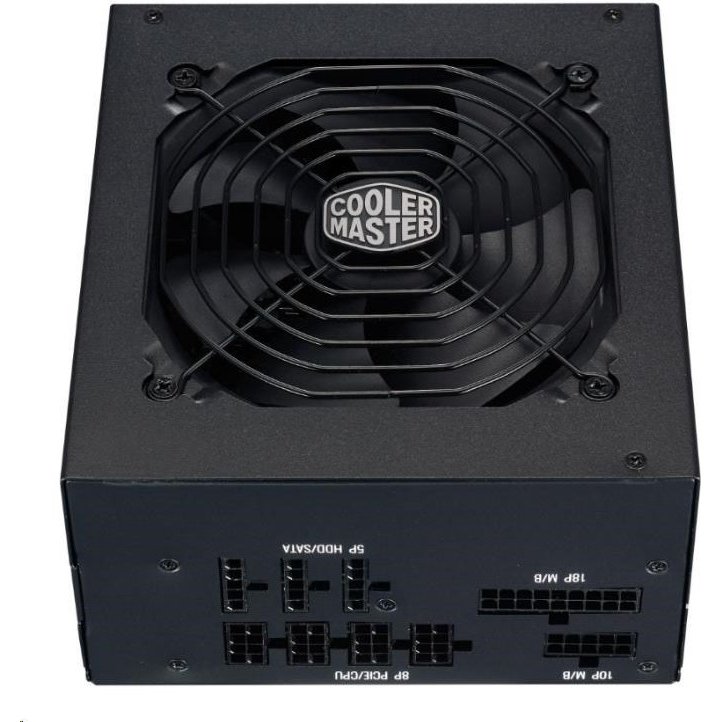

Cooler Master zdroj MWE 650 Gold-v2 Full modular, 650W, 80+ Gold

Kód: 33614
Part No.: MPE-6501-AFAAG-EU
Dostupnosť: zvyčajne do 24hodin
Výrobca: Cooler Master
91,00 € s DPH
88,50 € s DPH / 73,75 € bez DPH
885

MWE Gold –V2 (Full Modular) is the next step in the evolution of Cooler Master’s entry level 80 PLUSGold power offerings. The intention was not to create a new product but to improve a current one to be even more useful to consumers. The design changes implemented in this iteration of the MWG Gold were based on user feedback and demand. New things were added or changed to make the user experience better and simpler. Together, these design choices deliver a great entry level power supply option complete with high efficiency, reliability, simplicity, and a competitive price point.

Highly Efficient Performance : The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

2 EPS Connectors : 2 EPS connectors included with all models for universal current generation motherboard compatibility.

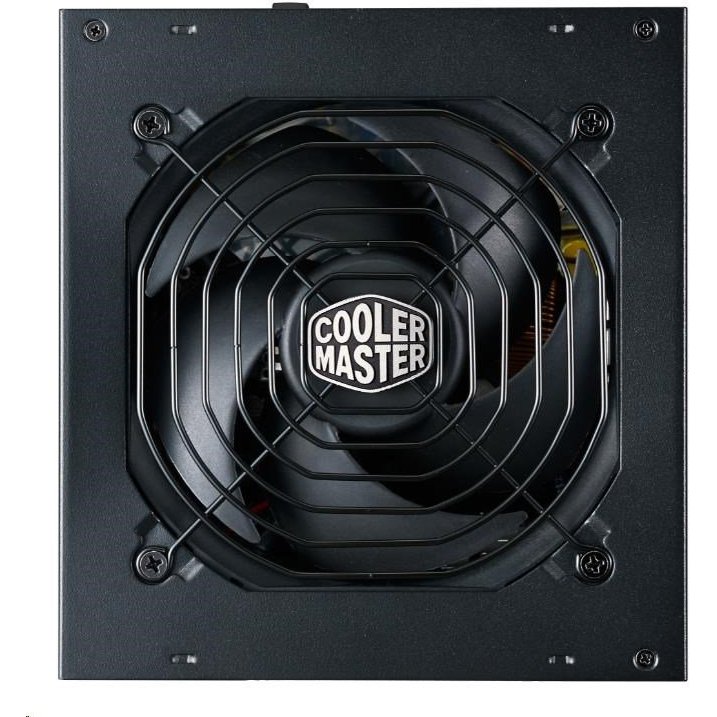

120mm HDB Fan : 120mm Hydro Dynamic Fan bearing for improved cooling and noise reduction.

High Operating Temperature : The MWE Gold - V2 can operate safely at up to 50 degrees.

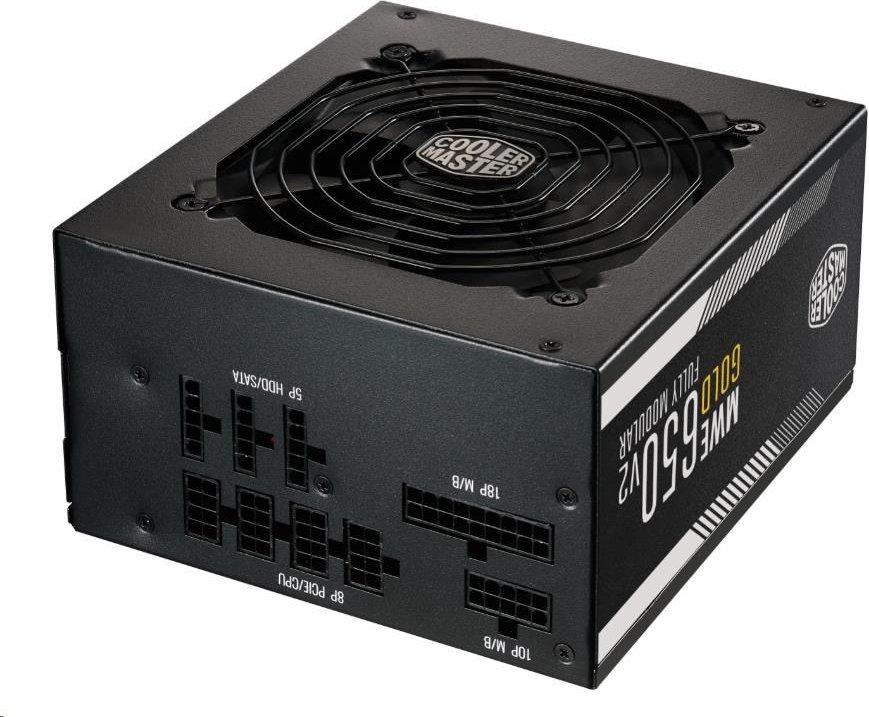

Full Modular Cabling : MWE Gold - V2 comes with full modular flat, black cables for increased airflow.

5 Year Warranty : All MWE Gold - V2 models come with a 5 year factory warranty from purchase date.

Product Name

MWE Gold 650 - V2 (Full Modular)

Item Code

MPE-6501-AFAAG

ATX Version

ATX 12V Ver. 2.41

PFC

Active PFC

Input Voltage

90 - 264V

Input Current

8 - 4A

Input Frequency

47-63Hz

Dimensions (L x W x H)

160 x 150 x 86mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

1500 RPM

Noise @ 20%

0 dBA

Noise @ 50%

17.9 dBA

Noise @ 100%

23.4 dBA

Efficiency

90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0 ~ 50?

Power Good Signal

100 - 150 ms

Hold Up Time

>16ms at 100% Load

MTBF

>100,000 hours

Protections

OVP / OPP / OTP / SCP / OCP / UVP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

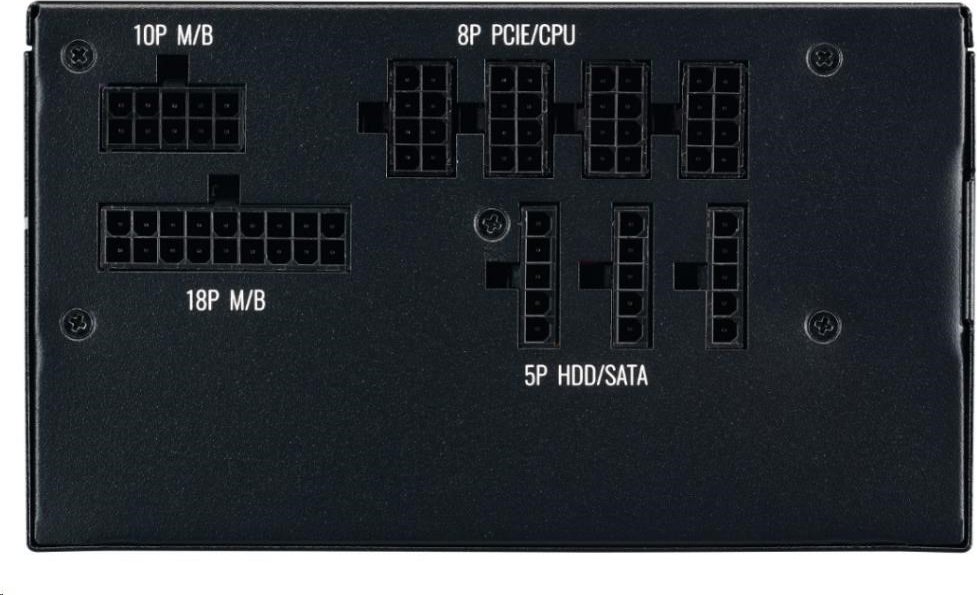

Connectors

ATX 24 Pin

x1

EPS 4+4 Pin

x1

EPS 8 Pin

x1

SATA

x8

Peripheral 4 Pin

x4

PCI-e 6+2 Pin

x4

AC INPUT

90 - 264V~ 8 - 4A 47-63Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5Vstb

20A

20A

54.1A

0.3A

3A

TOTAL POWER

120W

650W

650
