Chipset: Intel B660 Chipset
Rozměrový formát: ATX ( 30.5 cm x 24.4 cm )
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafická karta: (na základě procesoru)
*1 x DisplayPort
*1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
*S/PDIF out port
Síťová karta:
*1 x Intel 2.5Gb Ethernet
*Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2
Rozšiřující sloty:
*1 x PCIe 5.0/4.0/3.0 x16 slot
*1 x PCIe 3.0 x16 slot (supports x4 mode)
*2 x PCIe 3.0 x1 slots
RAID řadič: RAID 0/1/5/10
SATA: 4 x SATA 6Gb/s ports
M.2: 3 x M.2 slots
USB:
*Interní:
*1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
*1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
*1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
*3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
*1 x USB 2.0 port(s) (1 x Type-A)
Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header(s)
*1 x 4-pin CPU OPT Fan header(s)
*1 x 4-pin AIO Pump header(s)
*3 x 4-pin Chassis Fan header(s)
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*Storage related
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
*1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 header(s)
*1 x AURA RGB header(s)
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel header with Chassis intrude function
*1 x Thunderbolt header

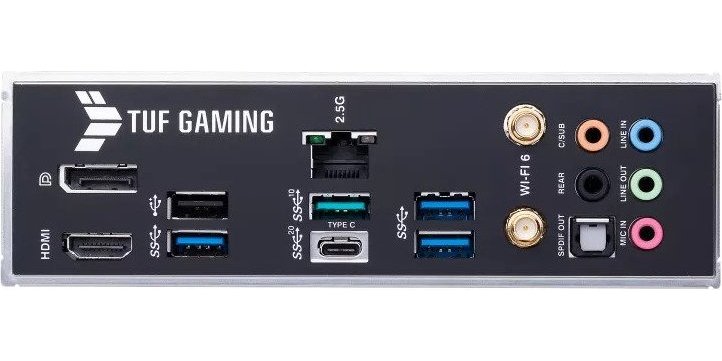

Externí porty:
*1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
*1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
*3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
*1 x USB 2.0 port(s) (1 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Intel 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port
BIOS: UEFI AMI BIOS, 128 Mb ROM
