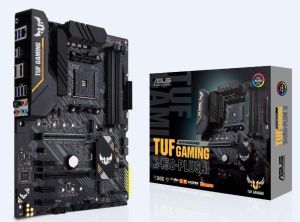

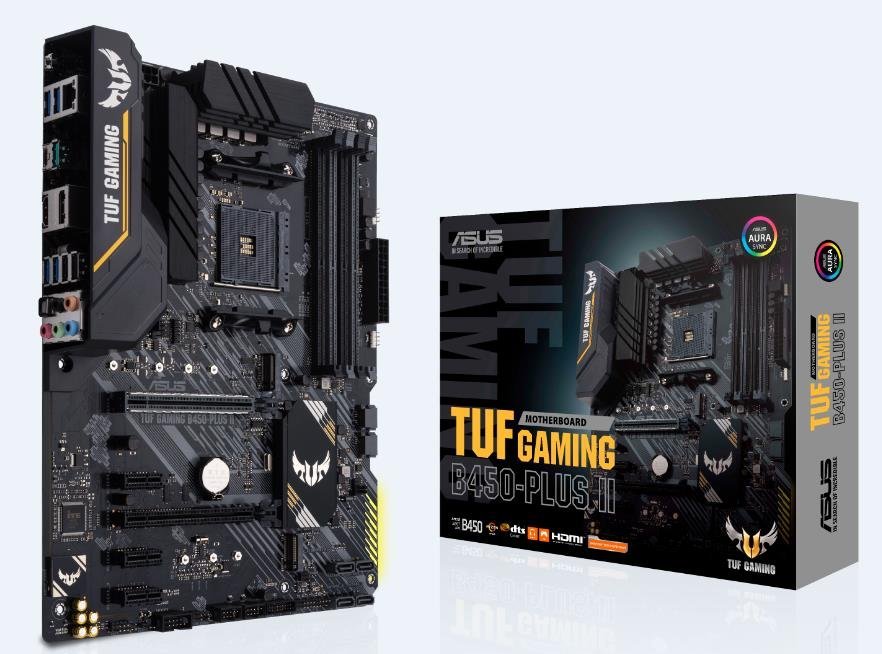

Chipset: AMD B450
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
*Dual Channel Memory Architecture
*ECC Memory (ECC mode) support varies by CPU
Grafická karta:
*Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics/Athlon)
Multi GPU: AMD CrossFireX™ Technology
Zvuková karta:
*Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Síťová karta:
*Realtek® L8200A
Rozšiřující sloty:
*3rd/2nd/1st Gen AMD Ryzen™ Processors
*1x PCIe 3.0/2.0 x16 (x16 mode)
*2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
*1x PCIe 3.0/2.0 x16 (x8 mode)
*AMD Athlon™ with Radeon™ Vega Graphics Processors
*1x PCIe 3.0/2.0 x16 (x4 mode)
*AMD B450 chipset
*1x PCIe 2.0 x16 (max at x4 mode)
*3x PCIe 2.0 x1
RAID řadič: 0, 1, 10
SATA:
*6x SATA 6Gb/s ports
M.2:
*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
*1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
USB:
*zadní USB porty ( celkem 8 )
*2x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
*4x USB 3.2 Gen 1 port(s)(4 x Type-A)
*2x USB 2.0 port(s)(2 x Type-A)
*přední USB porty ( celkem 6 )
*2x USB 3.2 Gen 1 port(s)
*4x USB 2.0 port(s)
Interní porty:
*1x CPU Fan connector(s) (1 x 4 -pin)
*3x Chassis Fan connector(s) (3 x 4 -pin)
*1x AIO_PUMP connector (1 x 4 -pin)
*2x Aura RGB Strip Header
*1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
*2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
*1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
*1x SPI TPM header
*6x SATA 6Gb/s connector(s)
*1x 24-pin EATX Power connector(s)
*1x 8-pin ATX 12V Power connector(s)
*1x Front panel audio connector(s) (AAFP)
*1x System panel(s)
*1x Clear CMOS jumper(s)
*1x COM port header
Externí porty:
*1x DisplayPort
*1x HDMI
*1x LAN (RJ45) port(s)
*2x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
*4x USB 3.2 Gen 1 Type-A
*2x USB 2.0
*5x Audio jack(s)
*1x BIOS FlashBack™ Button(s)
Obsah balení:
*User´s manual
*I/O Shield
*2x SATA 6Gb/s cable(s)
*1x M.2 Screw Package
*1x Supporting DVD
*1x TUF GAMING Sticker
*1x TUF Certification card(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-B450-PLUS-II
