| CPU |
Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list |
| Chipset |
AMD B550 |
| Memory |
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ) |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 |
| LAN |
Realtek RTL8111H 1Gb Ethernet |
| Audio |
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors |
| USB Ports |
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A) |
| Software Features |
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control |

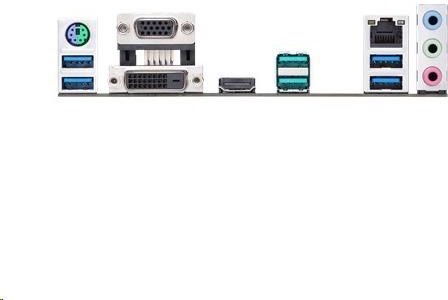

| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector |

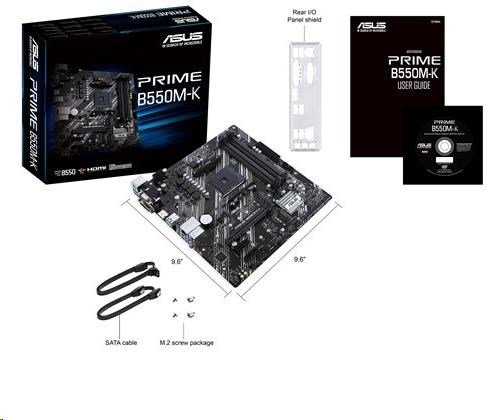

| Accessories |
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s) |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PXE |
| Operating System |
Windows® 10 64-bit |
| Form Factor |

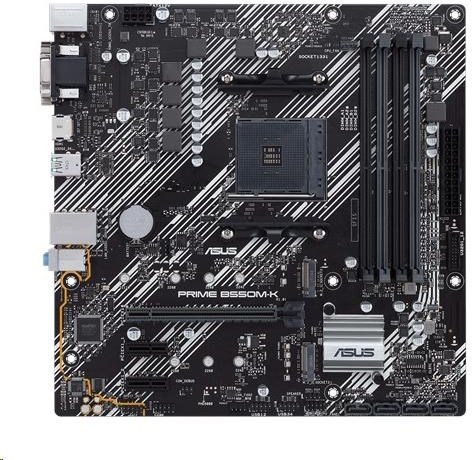

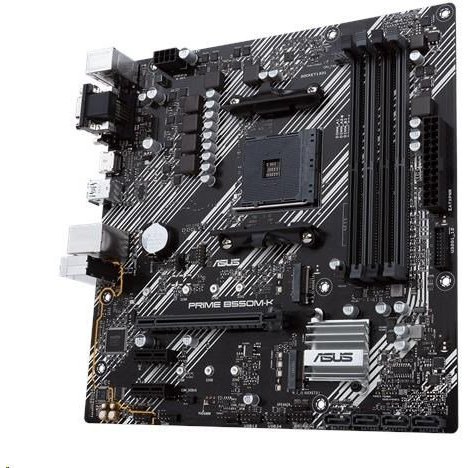

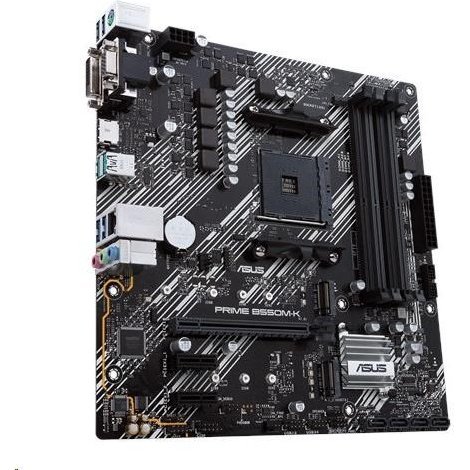

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
