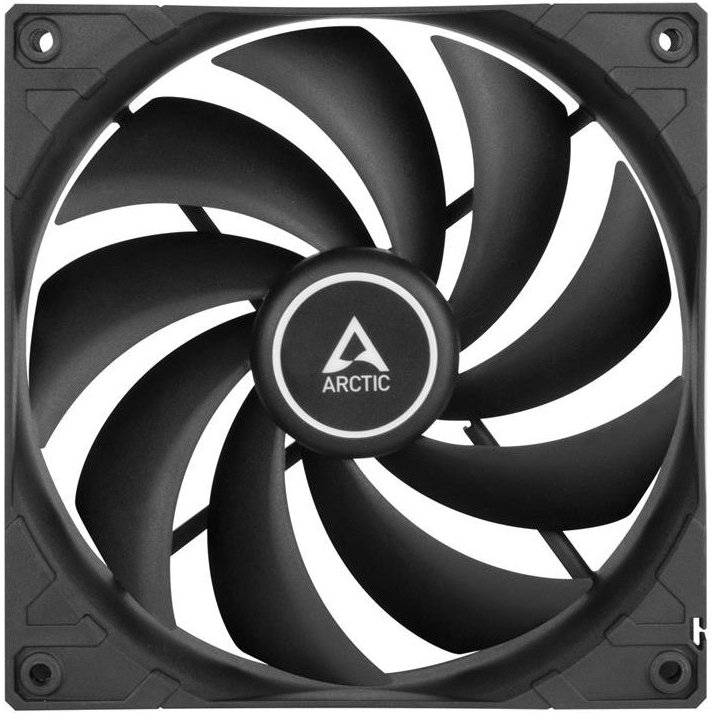

F14 PWM PST CO
140 mm PWM PST Case Fan for Continuous Operation
PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
FAN CONTROLLER MADE IN GERMANY
The ARCTIC F14 PWM PST CO fan is well known for high airflow at a comfortable noise level. The real improvement is the motor and controller. Our German engineers made this fan work at lower speed when performance is not needed. Often motherboards don´t provide PWM signals below 40 % and thus make PCs unnecessary loud - not so with the F14 PWM PST CO.
PWM SHARING TECHNOLOGY (PST) LOWERS NOISE
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don´t work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler´s PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
EXTENTED LIFE SPAN WITH JAPANESE DUAL BALL BEARING
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice if reliability is key. The CO case fan´s life span is up to 5 times longer compared to models using a generic bearing.
TWO WAY INSTALLATION
- Blow warm air out of the case
- Draw cool air into your case
General data
Performance
Fan Speed: 200 - 1350 rpm
Airflow: 74 CFM/ 126 m3/h
Static Pressure: 1.3 mm H2O
Noise Level: 0.5 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: PWM PST

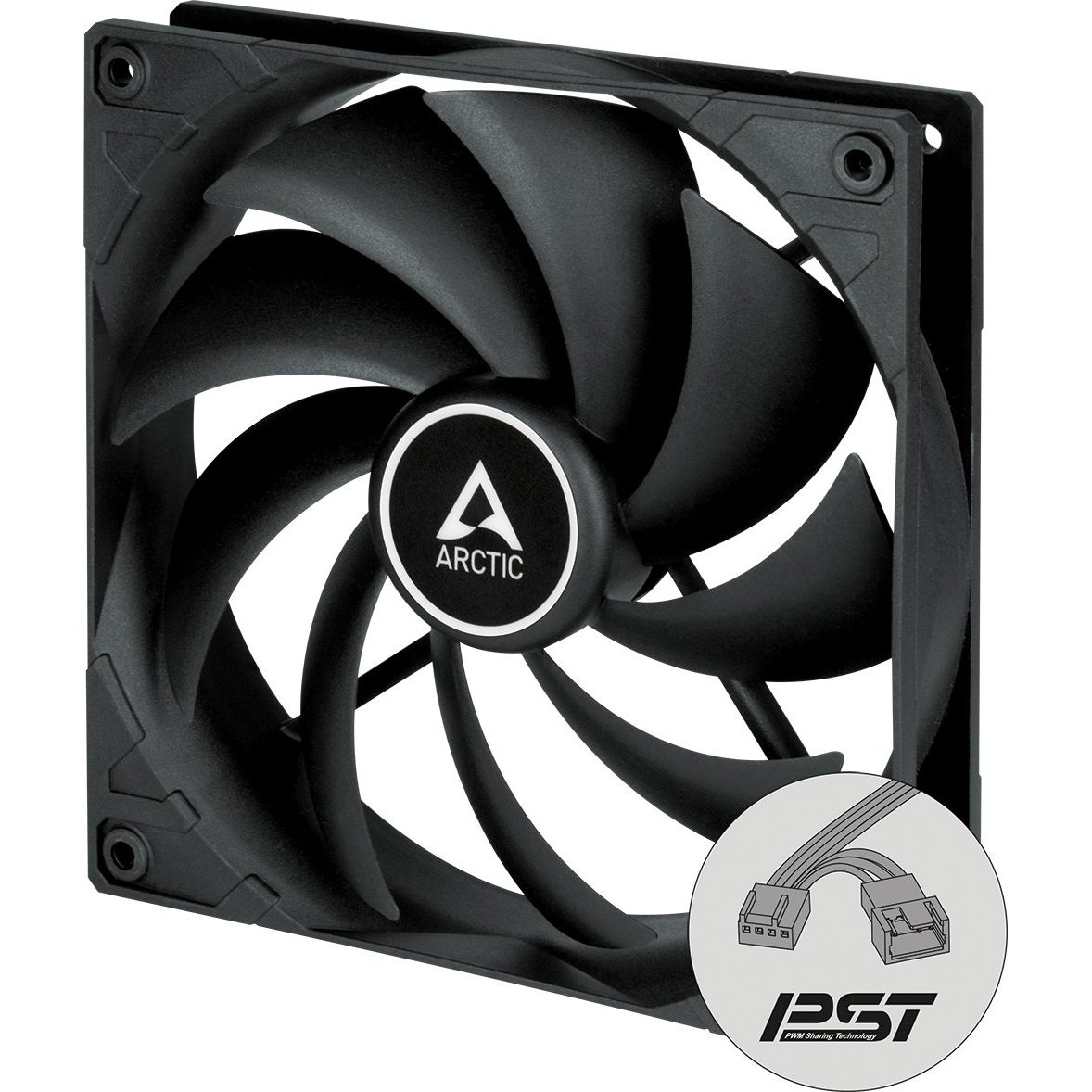

Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Dual Ball Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.3 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 183 g
Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.22 kg
