*Output
Output power capacity 1.98 KWatts / 2.2 kVAMax
Configurable Power (Watts) 1.98 KWatts / 2.2 kVANominal
Output Voltage 208V , 230V
Output Voltage Distortion Less than 5%Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 208, 220, 240
Topology Line Interactive
Waveform type Sine wave

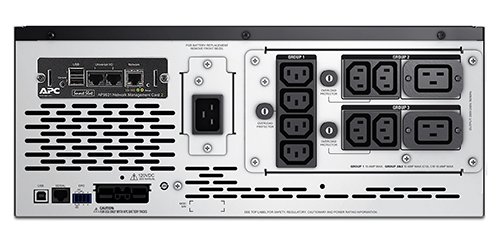

Output Connections
(2) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Transfer Time 6ms typical : 10ms maximum
*Input
Nominal Input Voltage 208V , 230VInput frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16PCord Length 6.56ft (2meters)
Input voltage range for main operations 140 - 280VNumber of Power Cords 1Other Input Voltages 220, 240
*Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproofTypical recharge time 3hour(s)Expected Battery Life (years) 3 - 5RBC Quantity 1Extendable Run Time 1Battery Volt-Amp-Hour Capacity 702Extended Run OptionsAPC-Smart-UPS-X-2200VA-Short-Depth-Tower-Rack-Convertible-LCD-200-240V-with-Network-Card RuntimeView Runtime Graph View Runtime Chart EfficiencyView Efficiency Graph
*Communications & Management
Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , SmartSlot , USBPre-Installed SmartSlot™ CardsAP9631 Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control consoleAudible Alarm Alarm when on battery : distinctive low battery alarm : configurable delaysEmergency Power Off (EPO) Yes
Surge Protection and Filtering
Surge energy rating 645JoulesFiltering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
*Physical
Maximum Height 43.2cm
Maximum Width 17.8cm
Maximum Depth 48.3cm
Rack Height 4U
Net Weight 38.56kg
Shipping weight 47.63kg
Shipping Height 33.0cm
Shipping Width 58.6cm
Shipping Depth 63.3cm
Color Black# of Layers per Pallet 4.0# of Units per Layer per Pallet 2.0
Pallet Weight 855.12lbs.
Units per Pallet 6.0
*Environmental
Operating Environment 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-10000ft ( 0-3000meters )
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit 55.0dBA
Online thermal dissipation 150.0BTU/hr
*Conformance
Approvals CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEEStandard warranty 3 years repair or replace (excluding battery) and 2 years for battery
