P5535, DLP 3D, 1080p (1920x1080), 4500 ANSI, 20 000:1, VGA, HDMI(MHL), HDMI, RJ45, repro 1x16W, 2.73Kg, LumiSense+, ColorBoost 3D, ColorSafe II, životnost lampy 4500h, Carrying Case, LAN

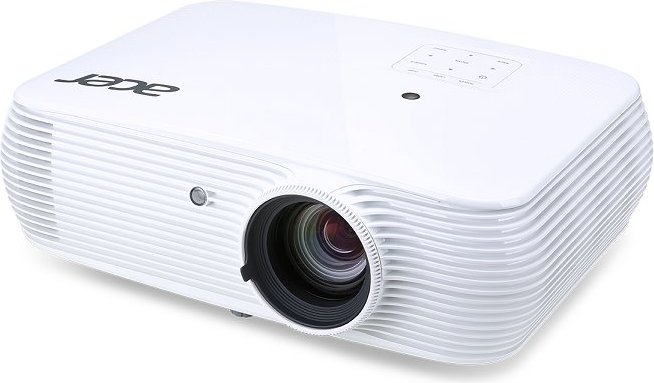

Model name P5535
Projection system DLP®
Resolution 1080p (1,920 x 1,080) Maximum WUXGA (1,920 x 1,200)
Brightness 4,500 ANSI Lumens (Standard), 3,600±5% ANSI Lumens (ECO), (Compliant with ISO 21118 standard)
Aspect ratio 16:9 (Native), 4:3 (Supported)
Contrast ratio Dynamic Black 20,000:1
Throw ratio 1.13 ~ 1.47 (80"@2m)
Projection lens F = 2.5 ~ 2.782, f = 16.91mm~21.60mm, Manual Zoom & Focus
Keystone correction
+/-20° (Vertical, Manual & Auto),
+/-20° (Horizontal, Manual),
4-Corner adjustment
Lamp life 4,000 Hours (Standard), 10,000 Hours (ECO), 15,000 Hours (ExtremeEco)
Noise level 31 dBA (Standard), 24 dBA (ECO)

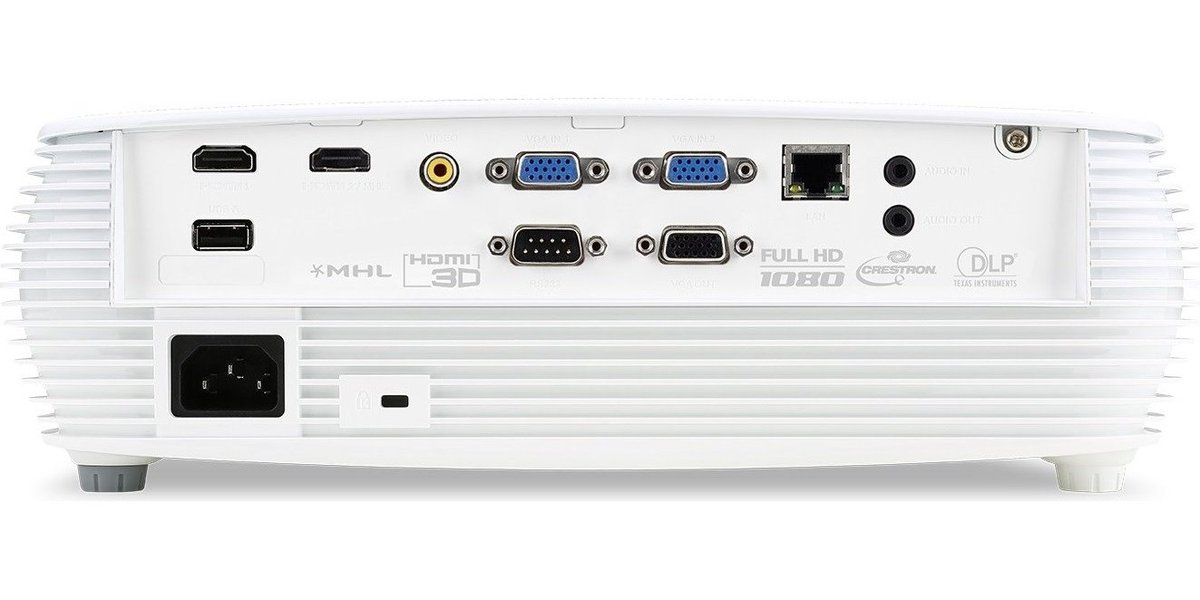

Input interface
Analog RGB/Component Video (D-sub) x 2
Composite Video (RCA) x 1
HDMI1.4a/MHL2.1 (Video, Audio, HDCP) x 1
HDMI1.4a(Video, Audio, HDCP) x 1
PC Audio (Stereo mini jack) x 1
Output interface
Analog RGB (D-sub) x 1
PC Audio (Stereo mini jack) x 1
DC Out (5V/2A, USB Type A) x 1
Control interface
USB (Type A) x 1, share output port
RS232 (D-sub) x 1
Network interface Ethernet port (RJ45) x 1
USB (Type A, internal) x 1, for optional wireless dongle
Dimensions 315 x 214 x 103 mm (12.4" x 8.4" x 4.1")
Weight 2.73 Kg (6 lbs)
